Product Review

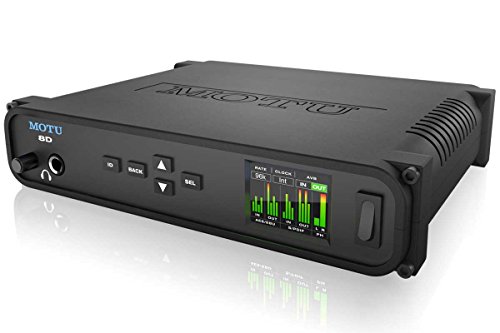

MOTU MOTU 8D
Digital audio interface and routing hub with AES3, S/PDIF, USB, AVB-TSN, DSP mixing, browser control, and published headphone-output measurements.
Overview
The MOTU 8D is a compact digital audio interface and routing hub built around AES3, S/PDIF, USB, and AVB-TSN connectivity. It combines sample-rate conversion, a 48-input DSP mixer, browser control, matrix routing, and an assignable headphone output in a half-rack design. MOTU still documents it as part of its AVB lineup [1][2].
Scientific Validity
\[\Large \text{0.7}\]MOTU’s User Guide publishes headphone-output specifications of +0/-0.15 dB frequency response from 22 Hz to 20 kHz, THD+N of -100 dB, and 108 dB A-weighted dynamic range [2]. On manufacturer-published figures alone, frequency-response deviation, harmonic distortion, and dynamic range all meet or exceed transparent-level thresholds for amplifier-class equipment. No independent third-party bench measurements for the 8D monitor path were located, so a conservative adjustment is applied for figures that are not externally verified; the manufacturer-published numbers nevertheless indicate strong performance on paper across these indicators [2].
Technology Level
\[\Large \text{0.6}\]The 8D integrates standard AES3, S/PDIF, USB class-compliant host connectivity, AVB-TSN networking, DSP mixing, browser control, and matrix routing into one platform [1][2]. The underlying blocks are mature rather than a distinctly new platform, so the score stays at 0.6.
Cost-Performance
\[\Large \text{1.0}\]Review target current US market price: 595 USD [3].
CP = 1.0 (no cheaper equivalent-or-better product was confirmed in the investigated set).
Comparison product: N/A.
Review target baseline:
- Functions: AES3 I/O, S/PDIF I/O, USB host connectivity, AVB-TSN networking, browser-based control, 48-input DSP mixer, matrix routing, sample-rate conversion on digital inputs, word clock I/O, headphone monitoring, and audio tools [1][2].
- Measured performance: frequency response +0/-0.15 dB, THD+N -100 dB, and A-weighted dynamic range 108 dB [2] (manufacturer-published specifications).
- Market price basis: 595 USD [3].
No cheaper equivalent-or-better product was confirmed after checking current market listings [3][4].
Reliability & Support
\[\Large \text{0.7}\]MOTU documents a 2-year hardware warranty that covers defects in materials and workmanship and allows repair or replacement during the warranty period [2]. The same documentation set also supports direct manufacturer service and firmware-update support within MOTU’s software ecosystem [1][2]. These terms support a moderate-high score.
Rationality of Design Philosophy
\[\Large \text{0.7}\]The 8D’s design philosophy is utility-first: standard digital interfaces, AVB networking, DSP mixing, browser control, and published monitor specs are used to solve routing and integration problems [1][2]. That is rational and reader-facing, but it is still an aggregation of mature technologies rather than a cost-minimizing or technically disruptive step. The score therefore remains at 0.7.
Advice
Choose the 8D when the job requires AES3 and S/PDIF routing, USB host connectivity, AVB-TSN networking, matrix patching, and browser-based control in one device. The published headphone-output specs show +0/-0.15 dB frequency response, -100 dB THD+N, and 108 dB A-weighted dynamic range, so the monitor path is numerically well covered [2]. If your setup does not need digital routing or network audio, a simpler interface is a more practical choice.
References
[1] MOTU - 8D product page - https://motu.com/products/avb/8d - accessed 2026-05-25. Official overview of AES3/S/PDIF, USB, AVB-TSN, DSP mixer, browser control, and stand-alone routing functions. [2] MOTU - 8D User Guide - https://s3.amazonaws.com/motu-www-data/manuals/avb/8D_User_Guide.pdf - accessed 2026-05-25. Official warranty/support guidance and published headphone-output specs: +0/-0.15 dB frequency response (22 Hz to 20 kHz), -100 dB THD+N, 108 dB A-weighted dynamic range. [3] Videoguys - MOTU 8D 9375 - https://videoguys.com/products/motu-8d-aes3-spdif-usb-avb-tsn-audio-interface-with-dsp-and-mixing - accessed 2026-05-25. Current market listing showing 595 USD. [4] Sweetwater - MOTU 112D 112x112 Thunderbolt / USB 2.0 Audio Interface with AVB - https://www.sweetwater.com/store/detail/112D–motu-112d-112x112-thunderbolt-usb-2.0-audio-interface-with-avb - accessed 2026-05-25. Comparator product page showing 1495 USD. [5] Mix - Review: MOTU 8D Digital Audio Interface - https://www.mixonline.com/technology/review-motu-8d-digital-audio-interface - accessed 2026-05-25. Third-party review page; no policy-defined bench table.
(2026.5.25)
