Overview

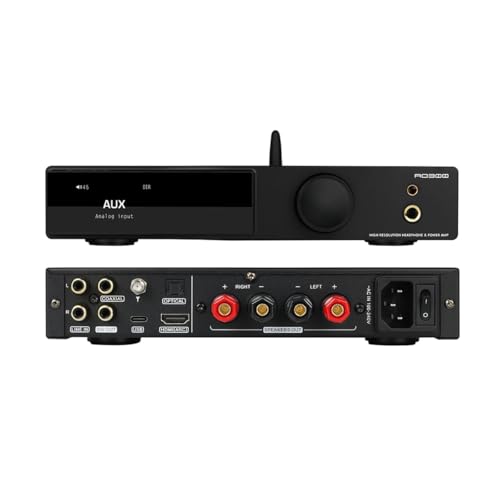

The SMSL AO300 is an all-in-one integrated stereo amplifier featuring built-in DAC functionality and headphone amplification. Introduced in 2023 as SMSL’s first comprehensive integrated solution, it combines a MA5332MS Class D amplifier chip delivering 165W × 2 at 4Ω with a CS43131 DAC supporting PCM 32-bit/768kHz and DSD256. The unit provides extensive connectivity including USB-C, optical, coaxial, HDMI ARC, and Bluetooth 5.0/5.3 with LDAC support. At 289 USD, it targets users seeking a complete system solution combining speaker amplification, DAC conversion, and headphone output in a single device.

Scientific Validity

\[\Large \text{0.7}\]

Manufacturer specifications indicate THD+N of 0.003% and S/N ratio >107dB, both excellent performance levels [1]. Crosstalk specification of 98dB demonstrates good channel separation. However, no independent third-party measurements are available for verification. Conservative evaluation applied due to reliance on manufacturer specifications only.

Technology Level

\[\Large \text{0.4}\]

The SMSL AO300 represents competent system integration of established commercial chipsets. The design combines readily available components including Infineon’s MA5332MS Class D amplifier, Cirrus Logic’s CS43131 DAC, and XMOS XU316 USB interface. While SMSL demonstrates in-house design capability in integrating these technologies with comprehensive connectivity options, all core technologies are standard licensed components available to competitors. The implementation shows appropriate contemporary technology adoption but lacks proprietary innovation or cutting-edge elements. The high-resolution format support exceeds practical requirements but provides limited competitive differentiation since competitors can easily source identical chips and replicate functionality.

Cost-Performance

\[\Large \text{1.0}\]

CP = 1.0 (no cheaper equivalent-or-better product exists)

After comprehensive search across price ranges from 65 USD to 430 USD, no products were identified offering equivalent-or-better measured performance and user-facing functions at a lower price. The AO300’s combination of high power output (165W×2 at 4Ω), integrated DAC with comprehensive digital input options (USB-C, optical, coaxial, HDMI ARC), Bluetooth connectivity with high-quality codecs, dedicated headphone amplification with balanced output, subwoofer output, and EQ processing represents a unique integration level. Competing products either lack essential functions (missing DAC integration or headphone outputs), provide significantly lower power output, or cost substantially more when equivalent functionality is achieved through multiple components.

Reliability & Support

\[\Large \text{0.6}\]

SMSL provides a standard 1-year warranty on amplifier and DAC components with global manufacturer support through direct channels. The company maintains repair services with parts availability and user-serviceable guidance. Build quality features solid CNC aluminum construction with gold-plated terminals and low operating temperatures favorable for longevity. However, the warranty period is below average industry standards. Minor compatibility issues documented include directional remote control requirements and HDMI ARC compatibility problems with certain Android TV multichannel audio sources. No widespread hardware failures or recalls reported.

Rationality of Design Philosophy

\[\Large \text{0.7}\]

SMSL demonstrates rational design philosophy with measurement-focused approach and cost-effective integration. The design prioritizes scientifically verifiable performance improvements over subjective elements, with costs directly allocated to functional improvements including comprehensive connectivity and modern Class D amplification technology. The company’s approach eliminates occult audio concepts while focusing on practical user benefits through unified system integration. However, the conventional system integration approach using standard commercial chipsets represents competent engineering rather than innovation. The high-resolution format support may exceed audibility thresholds but serves legitimate compatibility purposes without significant cost penalty.

Advice

The SMSL AO300 suits users seeking a complete audio system solution in a single device. The comprehensive integration eliminates component matching concerns while providing high power output suitable for demanding speakers. The extensive connectivity options including HDMI ARC make it particularly appropriate for modern digital source integration. However, users requiring specific measured performance verification should consider alternatives with published third-party measurement data. The high power output and headphone amplification capabilities provide flexibility for both speaker and personal listening applications, making it suitable for users wanting to consolidate multiple audio functions without purchasing separate components.

References

[1] SMSL Audio Official - AO300 PRO - https://www.smsl-audio.com/portal/product/detail/id/931.html - accessed 2026-03-14 [2] SMSL AO300 review - Soundphile Review - https://www.soundphilereview.com/reviews/smsl-ao300-review-44755/ - accessed 2026-03-14 [3] SMSL AO300 Review - Headfonia - https://www.headfonia.com/smsl-ao300-review/ - accessed 2026-03-14 [4] SMSL AO300 DAC / HeadAMP / Integrated Stereo Amplifier - Audiophile Heaven - https://www.audiophile-heaven.com/2023/11/smsl-ao300-dac-headamp-integrated-stereo-amplifier-class-d-back-in-game.html - accessed 2026-03-14
