Overview

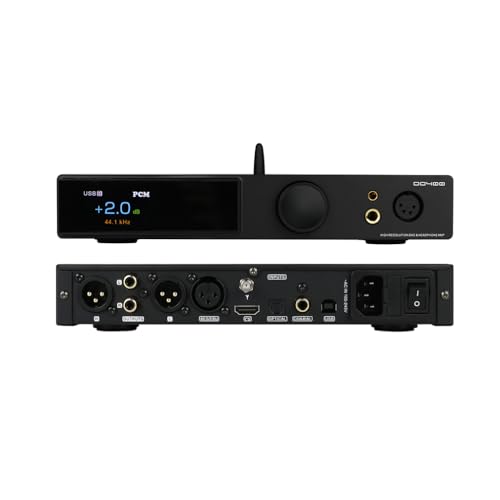

The SMSL DO400 is a fully balanced desktop DAC and headphone amplifier from SMSL (Foshan ShuangMuSanLin Electronics), released around August–September 2023 and sold worldwide via Linsoul, HiFiGo, Aoshida, and Amazon for 499 USD [1][2]. It combines an ESS ES9039MSPRO 8-channel DAC, a 3rd-generation XMOS XU-316 USB controller, and SMSL’s branded PLFC analog output stage in a single chassis, supporting PCM up to 32-bit/768 kHz, native DSD512, and MQA/MQA-CD hardware decoding [1]. Inputs include USB-B, AES/EBU, coaxial, optical, I²S, and Bluetooth 5.1 with LDAC, and outputs include 4-pin XLR, 4.4 mm balanced, 6.35 mm SE, plus XLR and RCA line outputs [1]. SMSL is a long-standing Chinese desktop-audio brand whose recent products have emphasized measurement-driven specifications over subjective tuning narratives.

Scientific Validity

Manufacturer-published, AP-sourced specifications report THD+N of 0.00005% at the XLR line output, 0.00007% at the RCA line output, and 0.00009% at the headphone output, with SINAD of approximately 125 dB (XLR), and S/N ratio and dynamic range of 133 dB (XLR) / 128 dB (RCA) / 126 dB (headphone) [1][3]. Pragmatic Audio’s review reproduces these figures and describes the frequency response as ruler-flat across the audible band with no audible variation across headphone impedances [3]. All available metrics are at excellent levels for a DAC/headphone-amp combo. However, these numeric figures are manufacturer/Audio-Precision-sourced and were reproduced by the reviewer without independent re-measurement, and no formal independent third-party measurement of this specific model has been published, which constrains the final score.

Technology Level

The DO400 is built around licensed flagship silicon — the ESS ES9039MSPRO DAC, XMOS XU-316 USB controller, TI OPA1612 / TPA6120A2 op-amps, and a Qualcomm Bluetooth 5.1 module — combined with SMSL’s branded but unpatented “PLFC” analog stage [1][2]. SMSL performs in-house circuit and system integration, but the underlying silicon is commodity hardware adopted by direct competitors such as Topping, Gustard, and Aune, providing no demonstrated 3+ year competitive advantage. No public patent associated with PLFC was located, and no evidence of external licensing exists. Bluetooth 5.1 is one generation behind current 5.3/5.4 modules, and several headline features — MQA/MQA-CD hardware decoding, JAS Hi-Res certification, and DSD512/768 kHz support — carry negligible audible benefit. Independent reviews confirm the measured performance does not meaningfully exceed peer products built on the same silicon.

Cost-Performance

The DO400’s current US market price is 499 USD [1][2]. After applying full user-facing function requirements, no cheaper current product was confirmed to provide equivalent-or-better functionality and performance including the DO400’s AES/EBU and I²S inputs.

The DX5 II demonstrates equivalent-or-better performance:

• THD+N (XLR): <0.00006% vs DO400’s 0.00005% (equivalent)
• S/N ratio (XLR): 132 dB vs 133 dB (equivalent, -1 dB)
• Dynamic range (XLR): 132 dB vs 133 dB (equivalent, -1 dB)
• SINAD (XLR): ~120+ dB measured by ASR (top-20 best-ever DAC class) vs ~125 dB (equivalent)
• Frequency response: reference-class flat across the audible band on both (equivalent)
• Headphone output power @ 32 Ω balanced: 6400 mW vs 3000 mW (better, +113%; also higher at 16/300/600 Ω)

Both products provide USB / coaxial / optical / Bluetooth (LDAC) inputs, full 4-pin XLR / 4.4 mm balanced / 6.35 mm SE headphone outputs, XLR and RCA line outputs, remote control, display, PCM 32-bit/768 kHz with DSD512 native, and MQA decoding. The DX5 II additionally provides a 10-band parametric EQ and 12 V trigger that the DO400 lacks. However, because the DX5 II does not include the DO400’s AES/EBU and I²S inputs, it is retained here as reference comparison data rather than a fully equivalent replacement for scoring.

Based on the currently confirmed options, no cheaper fully equivalent alternative is identified, so CP is 1.0. The comparison context remains provisional because the review target’s audio figures are manufacturer-supplied (AP) values reproduced by reviewers without independent re-measurement.

Reliability & Support

The DO400 carries a 1-year warranty as administered through authorized retailers (Linsoul, HiFiGo, Aoshida) [2], which is shorter than the 2-year industry average and accounts for the negative adjustment from the 0.5 baseline. Support is primarily retailer-driven: SMSL provides factory-level technical resources (drivers, firmware, manuals) through its support portal, but does not operate manufacturer-run service centers in most markets, and out-of-warranty repair availability is not clearly documented. Firmware is user-upgradable, but only one release is currently published with no documented update cadence. Some anecdotal user reports note minor concerns about the 4.4 mm jack edge, mild rotary-encoder wobble, and an isolated firmware-update brick case, but these are individual observations without statistical RMA or MTBF data, and no formal recall has been issued. The aluminum-chassis build is moderate complexity with no documented inherent fragility, and the time on market is too short to support a track-record bonus.

Rationality of Design Philosophy

SMSL’s framing of the DO400 is measurement-focused and specification-driven, with no reliance on tubes, R2R ladders, no-feedback topologies, or other approaches based on subjectivity or nostalgia [1]. Marketing copy centers on objective metrics (THD+N, SNR, dynamic range, output power) and certifications rather than musicality language. Costs are directed at function and measured performance — current-generation ES9039MSPRO DAC, XMOS XU-316 USB receiver, fully balanced output stage with high headphone power, broad digital and analog I/O, and Bluetooth 5.1 with LDAC. The product also represents clear measurable progression over earlier SMSL DO-series combos: newer DAC silicon, higher headphone output power, the addition of a 4-pin XLR jack and I²S input, and updated Bluetooth with LDAC [1]. The implementation is mainstream solid-state engineering using widely-adopted silicon — competent and rational, but conservative rather than innovative. Some marketing-leaning elements (MQA hardware decoding, JAS Hi-Res certification, DSD512 capability) carry limited audibility benefit but stop short of unscientific audibility claims.

Advice

If you specifically need AES/EBU or I²S inputs (e.g., to integrate with a CD transport or pro audio source), the DO400 is a viable option that includes both alongside a fully balanced headphone stage and complete consumer connectivity. The Topping DX5 II at 299 USD remains a strong reference candidate for measured DAC performance, headphone output power, and added EQ functionality, but it is not a fully equivalent replacement because it lacks AES/EBU and I²S inputs. The DO400’s 1-year warranty is shorter than typical desktop competitors and the underlying silicon is widely shared across the segment, so the purchase decision should prioritize required connectivity and support expectations.

References

[1] SMSL Audio - DO400 Official Product Page - https://www.smsl-audio.com/portal/product/detail/id/843.html - accessed 2026-04-28

[2] Linsoul Audio - SMSL DO400 product / specification listing - https://www.linsoul.com/products/smsl-do400 - accessed 2026-04-28 (price 499 USD; 1-year warranty)

[3] Pragmatic Audio - SMSL DO400 review - https://www.pragmaticaudio.com/reviews/2025/07/smsl-do400/ - accessed 2026-04-28; conditions: Audio Precision analyzer (data supplied by SMSL), 1 kHz, A-WTD/UN-WTD

[4] Topping Store - DX5 II product page - https://www.topping.store/products/topping-dx5-ii-hi-res-dac-headphone-amp-combo - accessed 2026-04-28 (price 299 USD)

[5] Audio Science Review - Topping DX5 II review (Amir) - https://www.audiosciencereview.com/forum/index.php?threads/topping-dx5ii-balanced-dac-and-headphone-amp-review.64264/ - accessed 2026-04-28; conditions: Audio Precision APx555, 1 kHz, balanced output

(2026.4.29)
